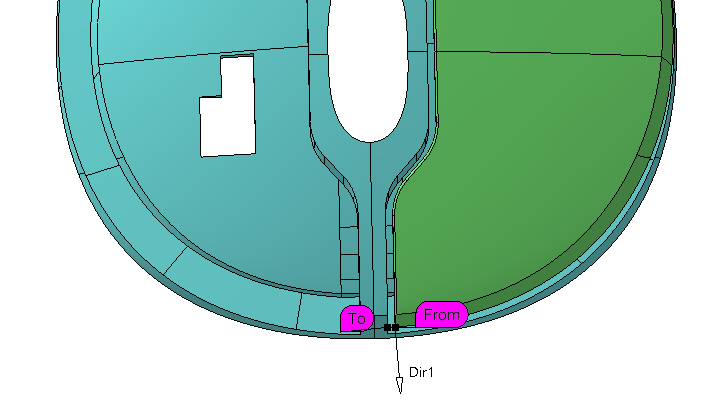

Measurements: 5. Left_Click_Flush on Mouse
Name | Parent | Type | Nominal | USL | LSL | Feat_List1 | Feat_List2 |
Left_Click_Flush | Mouse | Point Distance | -12.560067 | +0.500000 | -0.500000 | Left_Cover_Measg1(Fr) | Left_Cover_Measg1(To) |

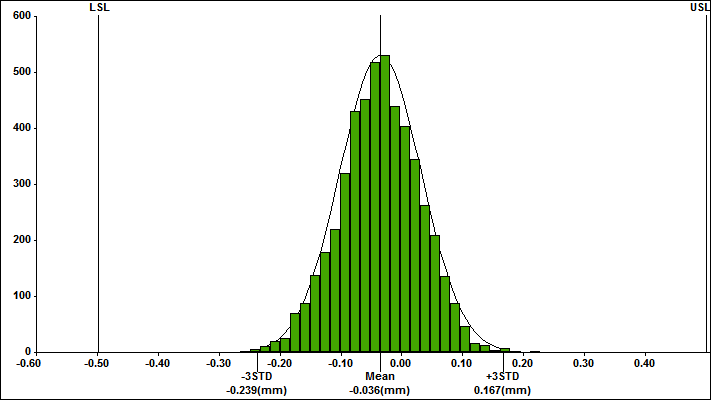

Runs | Nominal | Mean | STD | 6STD | LSL | USL | L-OUT% | H-OUT% | Tot-OUT% | Est.Type | Est.Low | Est.High | Est.Range |
5000 | -0.037(mm) | -0.036(mm) | 0.068(mm) | 0.406(mm) | -0.500(mm) | 0.500(mm) | 0.000 | 0.000 | 0.000 | Normal | -0.239(mm) | 0.167(mm) | 0.406(mm) |
Index | Contributor | Feature | Part | Range | Contribution |
---|---|---|---|---|---|
1 | Position | Left_Cover-4way | Left_Cover_1 | M:0.100(mm) |
23.11% |
2 | Surface_profile_1 | CadSurf2 | Top_Cover_1 | M:0.200(mm) |
14.04% |
3 | Flatness | Left_Cover-UD2 | Left_Cover_1 | M:0.200(mm) |
14.04% |
4 | Surface_profile_1 | CadSurf1 | Top_Cover_1 | M:0.200(mm) |
8.55% |
5 | Flatness | Left_Cover-UD1 | Left_Cover_1 | M:0.200(mm) |
8.55% |
6 | Surface_profile_1 | CadSurf4 | Top_Cover_1 | M:0.200(mm) |
7.29% |
7 | Surface_profile_1 | CadSurf3 | Top_Cover_1 | M:0.200(mm) |
7.29% |
8 | Flatness | Left_Cover-UD3 | Left_Cover_1 | M:0.200(mm) |
7.29% |
9 | Flatness | Left_Cover-UD4 | Left_Cover_1 | M:0.200(mm) |
7.29% |
Sum of Remaining 1 Contributors = 2.54%
Index | Contributor | Feature | Part | Range | G Factor | 6 Sigma | Contribution |
---|---|---|---|---|---|---|---|
1 | Position | Left_Cover-4way | Left_Cover_1 | 0.100(mm) | 1.033 | 0.209(mm) | 26.090% |
2 | Surface_profile_1 | CadSurf2 | Top_Cover_1 | 0.200(mm) | -0.753 | 0.151(mm) | 13.487% |
3 | Flatness | Left_Cover-UD2 | Left_Cover_1 | 0.200(mm) | -0.753 | 0.151(mm) | 13.486% |
4 | Surface_profile_1 | CadSurf1 | Top_Cover_1 | 0.200(mm) | -0.587 | 0.117(mm) | 8.216% |
5 | Flatness | Left_Cover-UD1 | Left_Cover_1 | 0.200(mm) | -0.587 | 0.117(mm) | 8.216% |
6 | Surface_profile_1 | CadSurf4 | Top_Cover_1 | 0.200(mm) | 0.542 | 0.108(mm) | 7.001% |
7 | Surface_profile_1 | CadSurf3 | Top_Cover_1 | 0.200(mm) | 0.542 | 0.108(mm) | 7.001% |
8 | Flatness | Left_Cover-UD3 | Left_Cover_1 | 0.200(mm) | 0.542 | 0.108(mm) | 7.001% |
9 | Flatness | Left_Cover-UD4 | Left_Cover_1 | 0.200(mm) | 0.542 | 0.108(mm) | 7.001% |
Total | 0.410(mm) |
Sum of Remaining 1 Contributors = 2.502%
