Measurements: 4. Left_Click_Gap on Mouse

NameParentTypeNominalUSLLSLFeat_List1Feat_List2
Left_Click_GapMouseDVTI_ptdistPoint Distance+64.657787+1.000000+0.000000Left_Cover_Measg1(Fr)Left_Cover_Measg1(To)

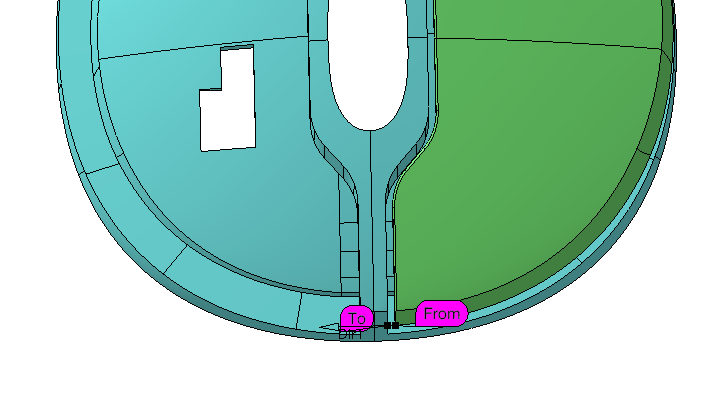

Five Button Mouse Report_UserView_Left_Click_Gap_Mouse

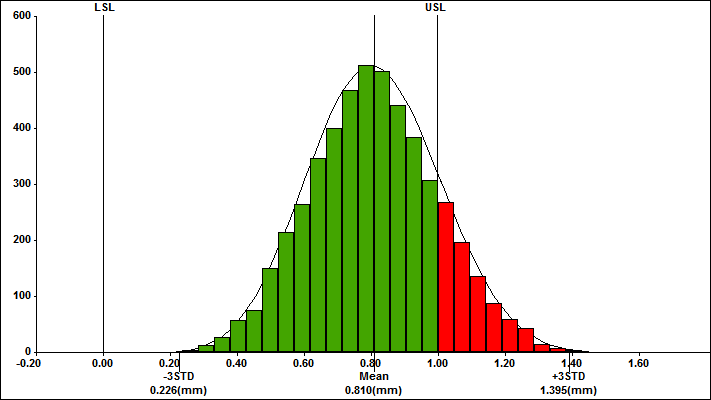

Runs Nominal Mean STD 6STD LSL USL L-OUT% H-OUT% Tot-OUT% Est.Type Est.Low Est.High Est.Range
5000 0.800(mm) 0.810(mm) 0.195(mm) 1.169(mm) 0.000(mm) 1.000(mm) 0.000 17.060 17.060 Pearson I 0.274(mm) 1.390(mm) 1.115(mm)

Images\Five Button Mouse Report_Simu_Left_Click_Gap_Mouse.png not found
Five Button Mouse Report_UserView_Left_Click_Gap_Mouse

Index Contributor Feature Part Range Contribution Graph
1 Position Left_Cover-4way Left_Cover_1 M:0.100(mm)
20.86%

2 Surface_profile_1 CadSurf1 Top_Cover_1 M:0.200(mm)
18.41%

3 Flatness Left_Cover-UD1 Left_Cover_1 M:0.200(mm)
18.41%

4 Surface_profile_1 CadSurf2 Top_Cover_1 M:0.200(mm)
17.09%

5 Flatness Left_Cover-UD2 Left_Cover_1 M:0.200(mm)
17.09%

6 Position Left_Cover-2way Left_Cover_1 M:0.100(mm)
8.11%

Index Contributor Feature Part Range G Factor 6 Sigma Contribution Graph
1 Position Left_Cover-4way Left_Cover_1 0.100(mm) 2.655 0.538(mm) 21.270%

2 Surface_profile_1 CadSurf1 Top_Cover_1 0.200(mm) 2.495 0.499(mm) 18.267%

3 Flatness Left_Cover-UD1 Left_Cover_1 0.200(mm) 2.495 0.499(mm) 18.267%

4 Surface_profile_1 CadSurf2 Top_Cover_1 0.200(mm) -2.404 0.481(mm) 16.958%

5 Flatness Left_Cover-UD2 Left_Cover_1 0.200(mm) -2.403 0.481(mm) 16.957%

6 Position Left_Cover-2way Left_Cover_1 0.100(mm) 1.656 0.336(mm) 8.273%

Total           1.167(mm)
